Rated 5.0 out of 5
11 Reviews

SKU: 1029

Regular price $39.95

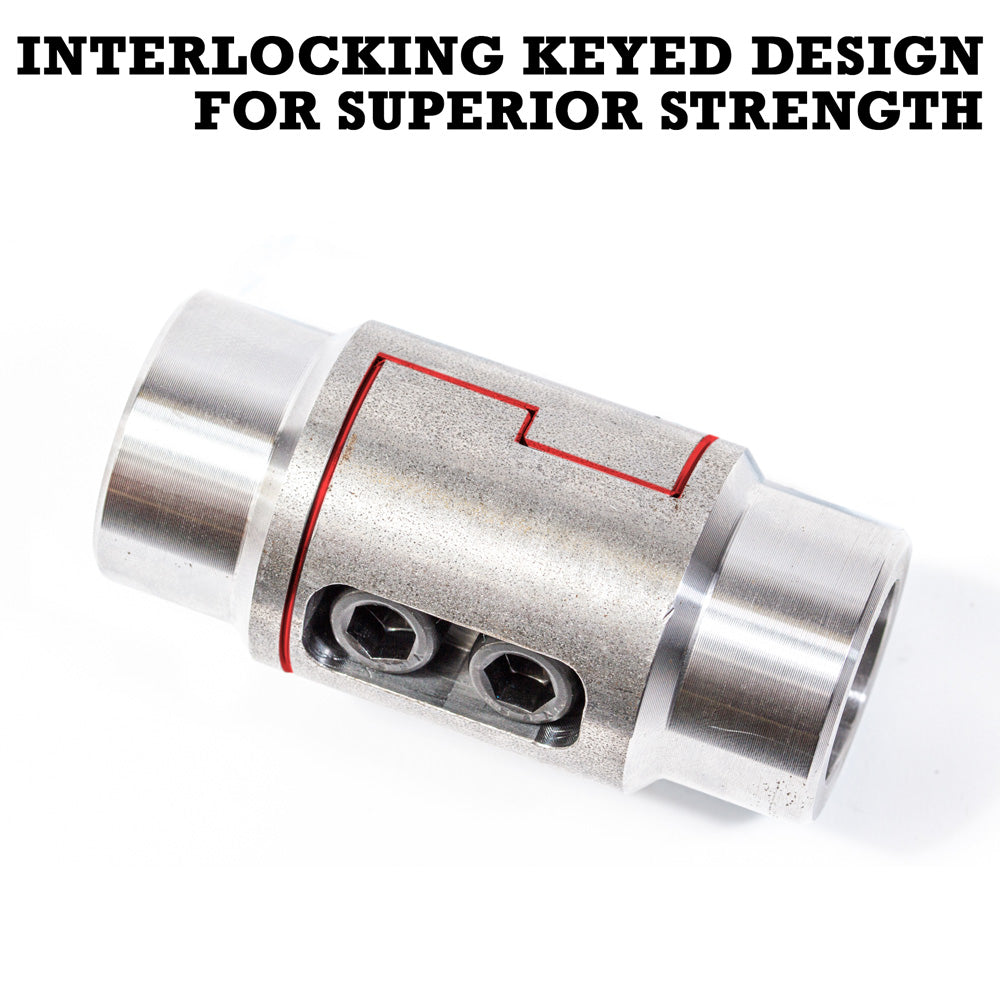

When we sat down to come up with a design for our interlocking inner diameter tube clamps/couplers, we thought we could greatly improve upon what already existed. We built a number of unique features into these that sets them apart! At TMR Customs we manufacture the world's best roll cage clamp!

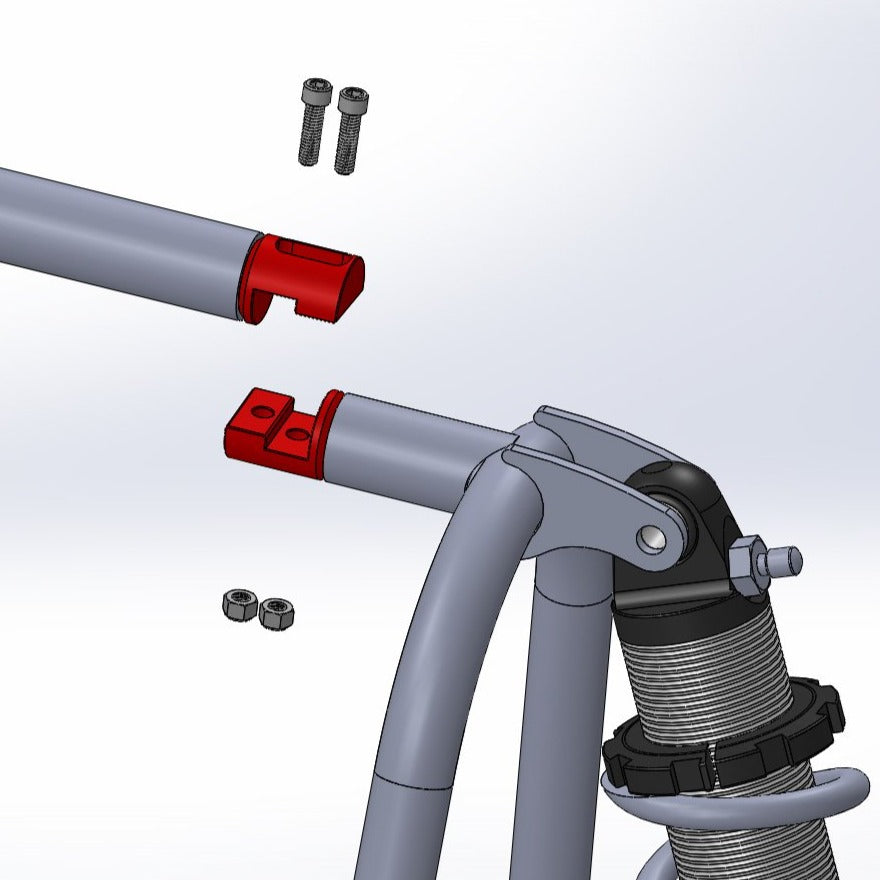

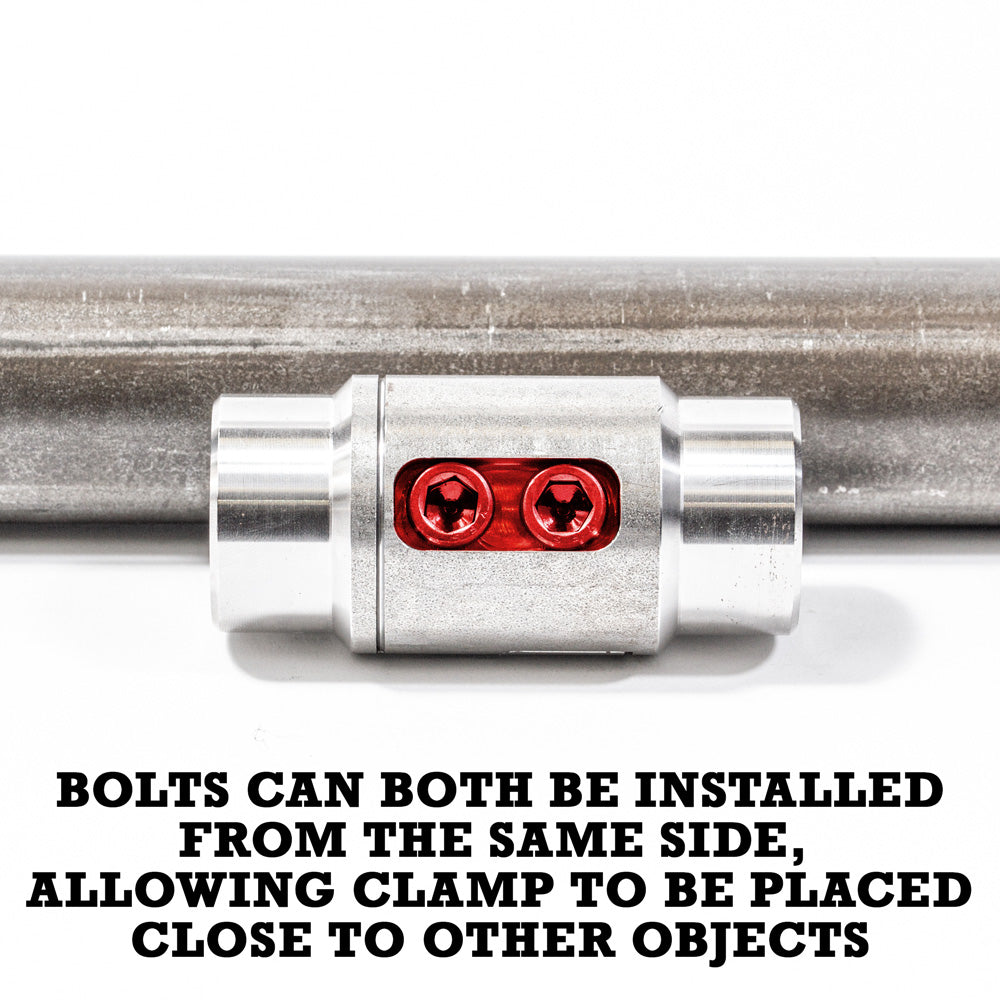

1: Both bolts can be loaded from the same direction! Gone are the days of threading in one fastener from the front side, and one fastener from the back side. Now you can mount our tube clamp extremely close to other components on your chassis without interference issues!

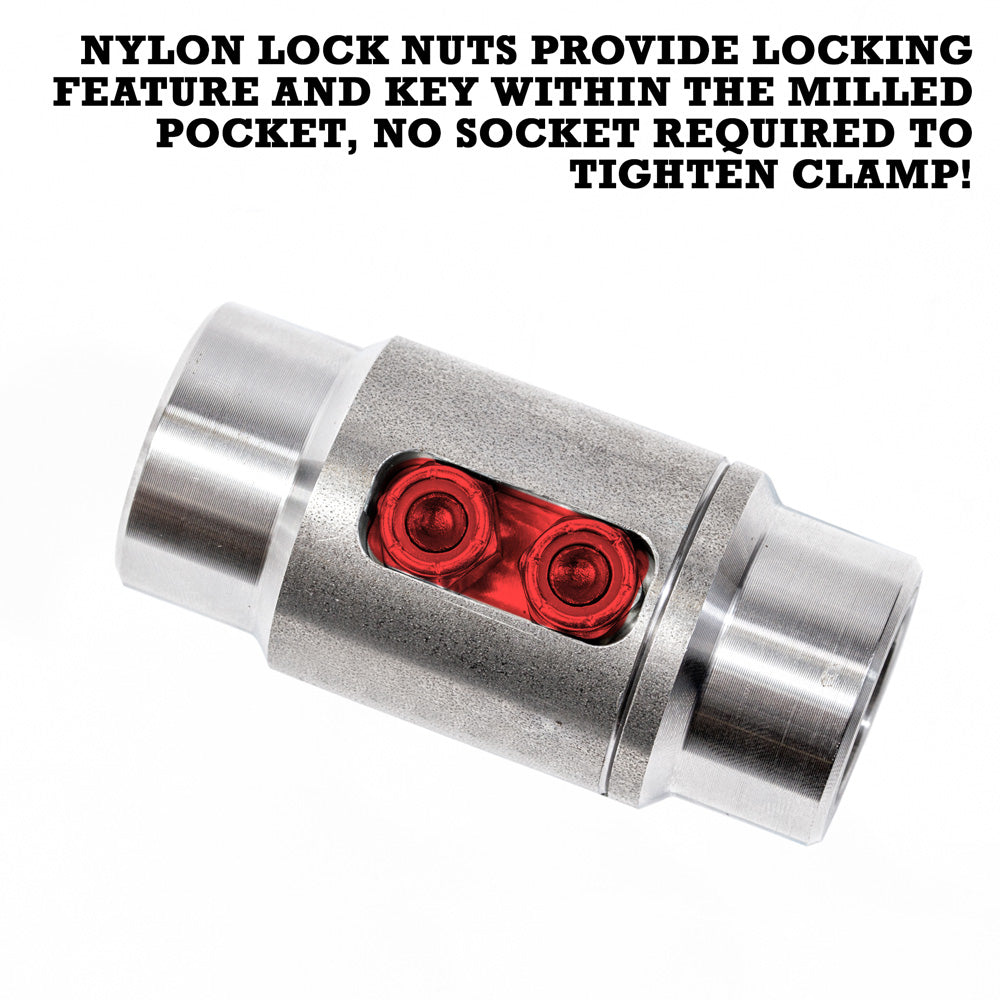

2: Locking feature - we use a nylon lock nut. No need to worry about stripping out the tapped holes in your clamps. The nylock nuts key into the machined pocket, eliminating the need to hold them with a wrench or socket when tightening.

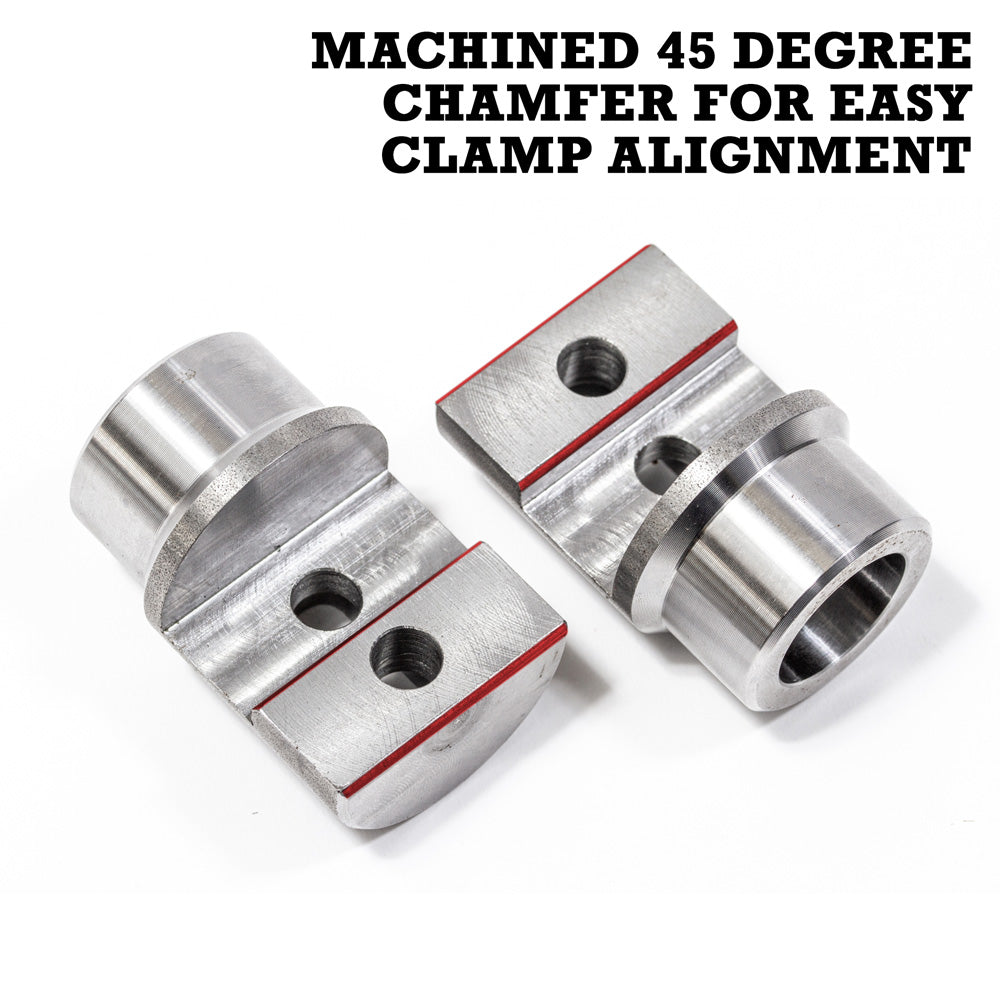

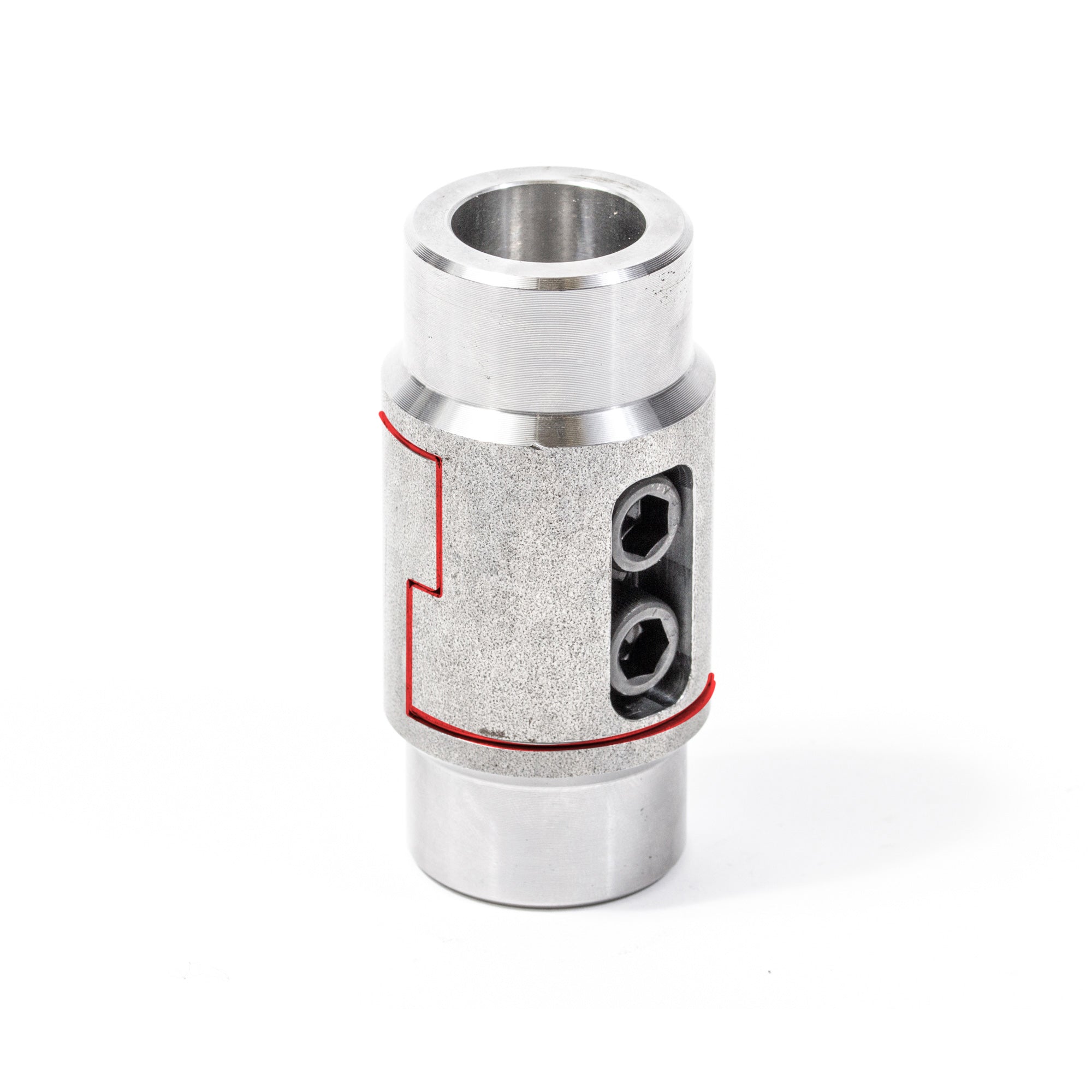

3: We machined a large 45 degree chamfer along the interlocking edges. This makes it much easier to align the clamps, especially after they have pulled from welding, or the tubes have slightly tweaked from a roll over or crash.

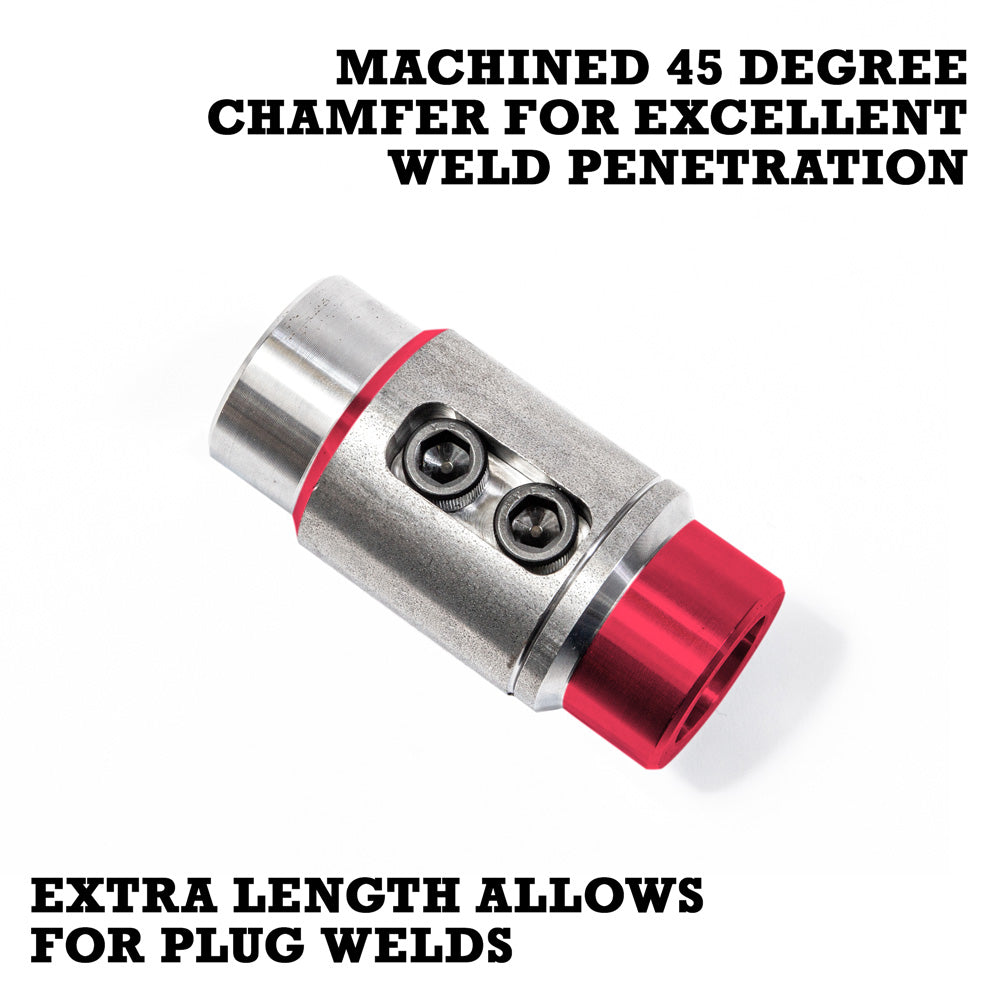

4: We left enough length on the small ID that is inserted into the tube that you can properly plug weld these for additional strength.

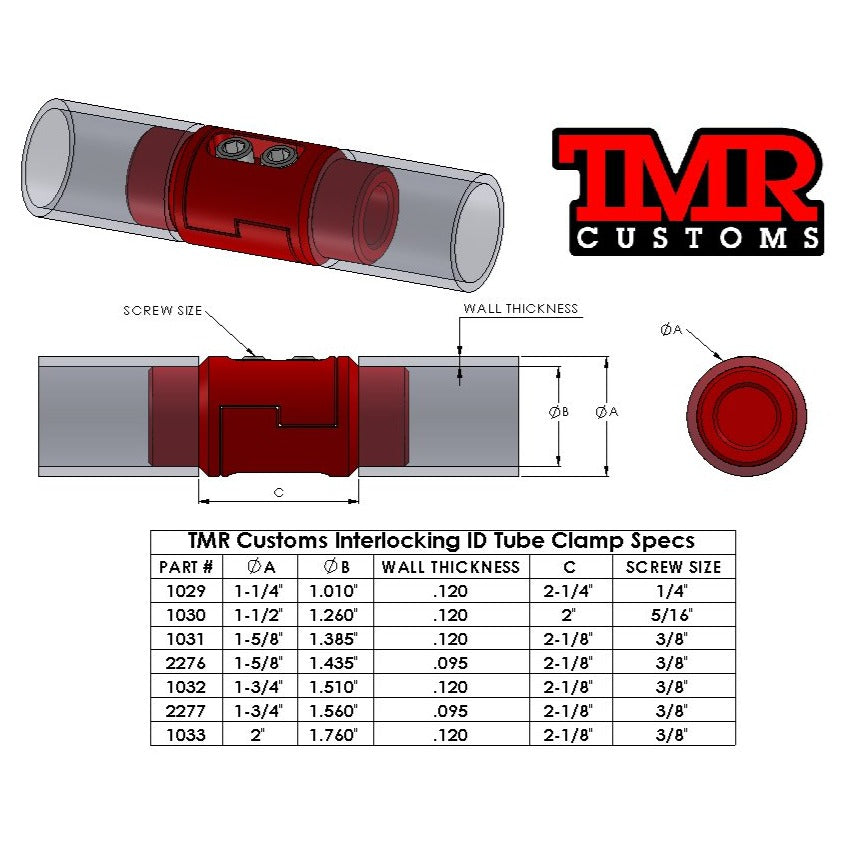

CHOOSE FROM THE OPTIONS BELOW TO MATCH THE SIZE OF YOUR TUBING!


We're wheelers too - we back every product with the TMR Customs quality guarantee. Our products are designed to be the ultimate in durability and withstand years of abuse. So go ahead and abuse them in the dirt and rocks - just as they were intended!

DESIGNED, MANUFACTURED AND TESTED BY TRUE OFF ROAD ENTHUSIASTS!

average rating 5.0 out of 5
Based on 11 reviews
  • 5 Stars
    11 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
Customer photos and videos
11 Reviews
Reviewed by Jason R.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Tube Coupler

Great piece. Tolerances and clearances are spot on. I like that the bolts can be loaded from either side and the nuts are sperate. Don't have to worry about stripping out the insert.

Loading...
Was this helpful?

TMR Customs

Thank you sir!

Reviewed by Jason L.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Great tube clamps

These are beautifully machined tube clamps. I have used clamps from other manufacturers where the bolts were opposing and these are far superior. The ability to start the bolts from the same side, and the ability to put them in either direction makes them adaptable and easy to set up.

Loading...
Was this helpful?

TMR Customs

Thanks for the detailed review and photo Jason.

Reviewed by Thomas D.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Quality product

Very solid and precision made product. I haven't actually used it yet, but plan to use them to modify a 1-5/8" dia roll cage. I needed to cut front pillar pipes to replace top halo. Will use interlocking clamp to make it easier to reconnect and join the lower Pillar to the new upper pillar piece. Technically, I could have just used an added inner pipe, at the joint, but the old and new pipes have slightly different inner diameter and wall thickness, so using a solid clamp, will make it easier to grind down clamp to precise diameter. Typically these clamps are used to allow pipes to be removable. But in my case, it wont ever be removed, so I might weld the connection, as an added safety.

Loading...
Was this helpful?

TMR Customs

Thanks for the detailed info on how you'll be using the clamps Thomas. Have a great day!!

Reviewed by Donny L.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

The best

You guy make awesome stuff

Loading...
Was this helpful?

TMR Customs

Thanks Donny, appreciate the feedback!!

Reviewed by Toby H.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Great Customer Service After UPS Lost my Clamps

This is my second order of clamps from TMR for an Ultra4 I'm building, and this time I received an empty box with just the receipt inside! I contacted TMR and their man Tim responded right away and without question sent out a new batch of clamps.

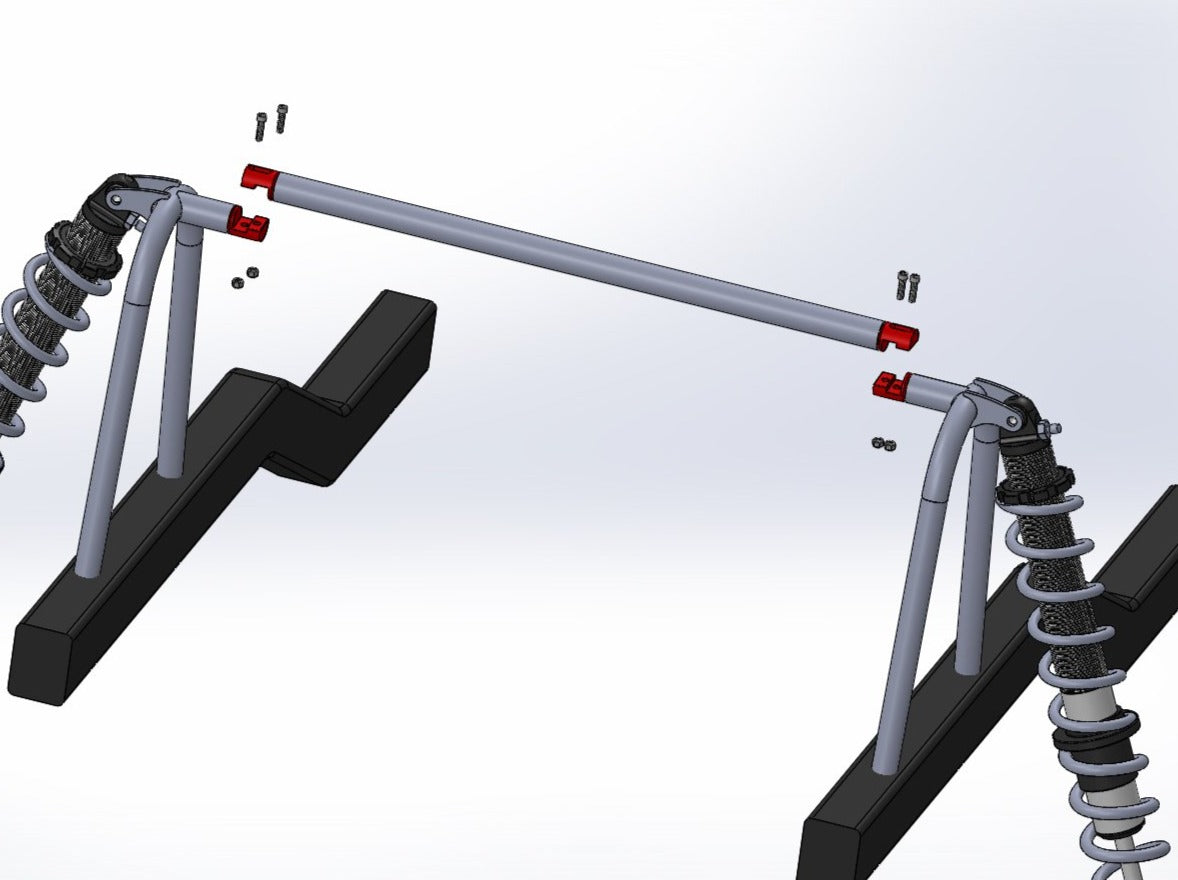

Just like all their other products, beautifully machined and built. I especially like their tube clamps because they have a shear lip to keep the tube from being pulled apart and come out to the same price as other competitors normal clamps that are just two flats bolted together (which results in all the load going through the bolt in shear, which is undesirable). My front shock cross brace, seat mounts, and entire interior/center console uses these tube clamps so everything can be rigidly mounted and removed. Can't beat the price or service from TMR.

Loading...
Was this helpful?

TMR Customs

Thanks for the awesome feedback Toby. Unbelievable that UPS thought it was OK to deliver an empty box that had blown all the parts out of. Glad we were able to get you fixed up quickly and not delay your build!
