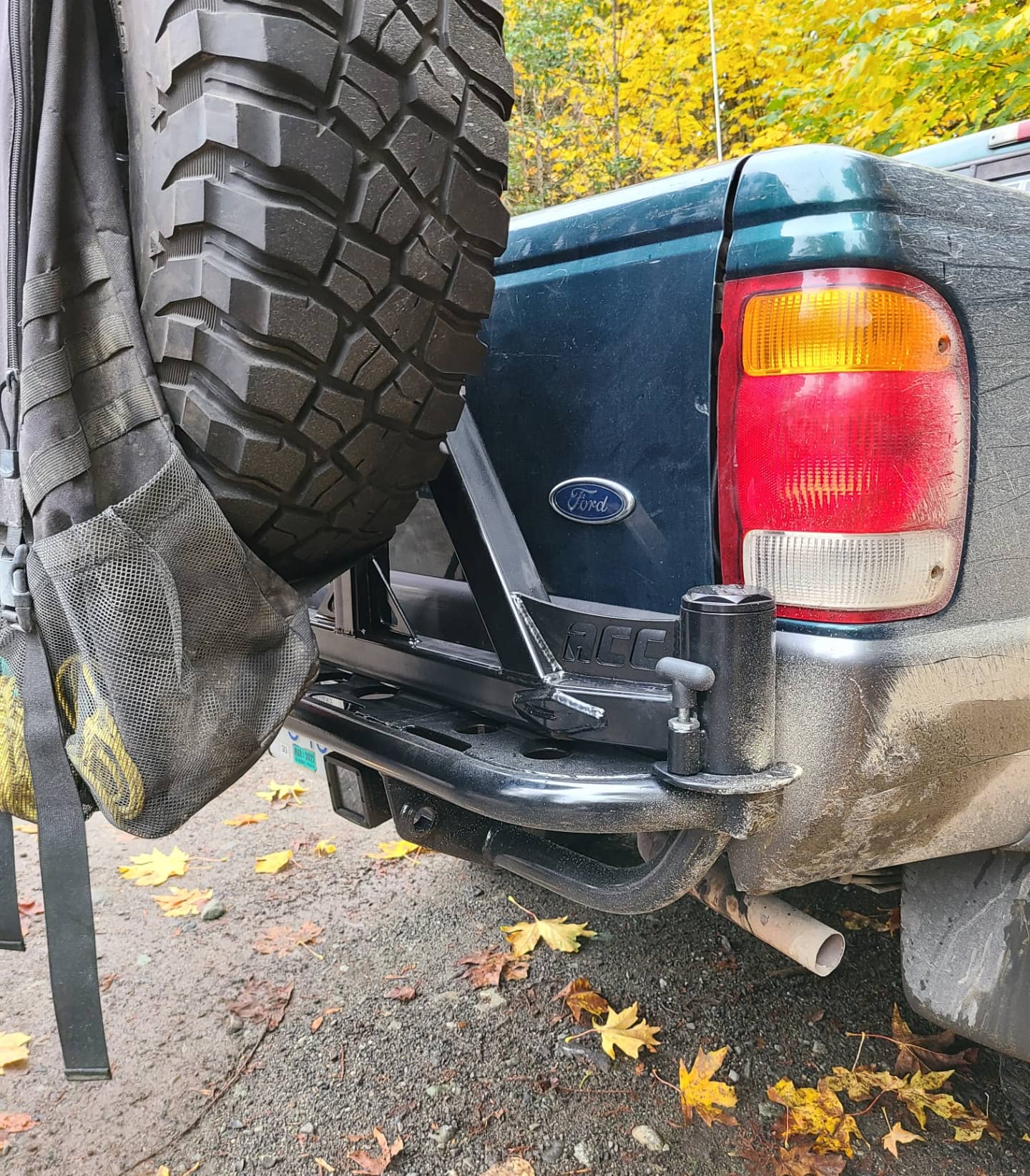

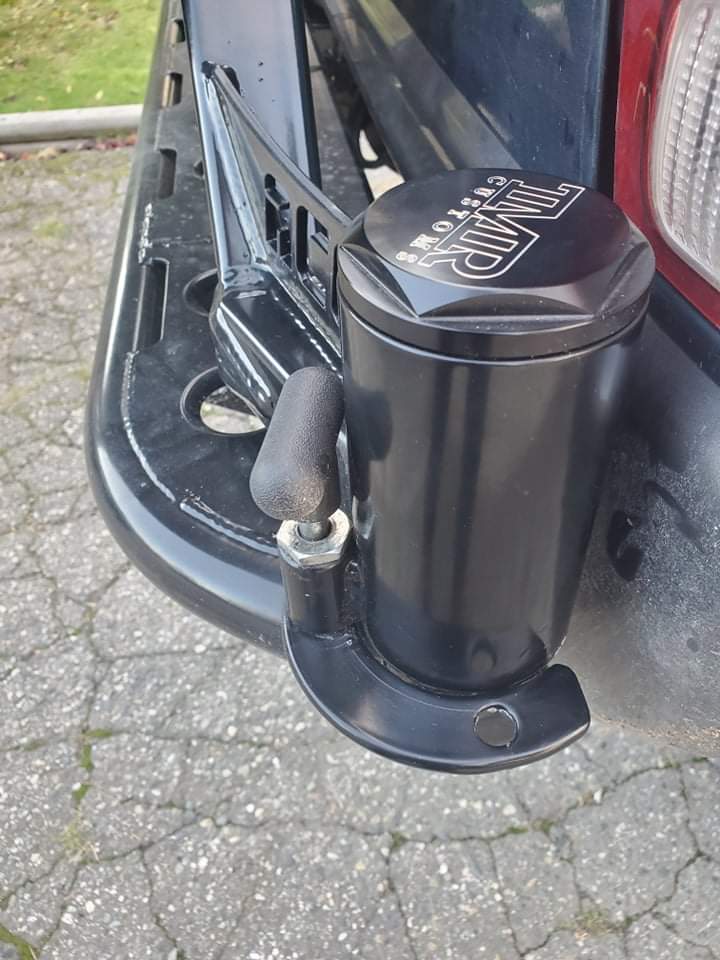

MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle
MEGA Swing Out Tire Carrier Spindle

MEGA Swing Out Tire Carrier Spindle

Rated 4.9 out of 5
Based on 11 reviews

SKU: 2301

Regular price $129.95

Looking to go big or go home? TMR's MEGA Swing Out Tire Carrier Spindle is the one you need!

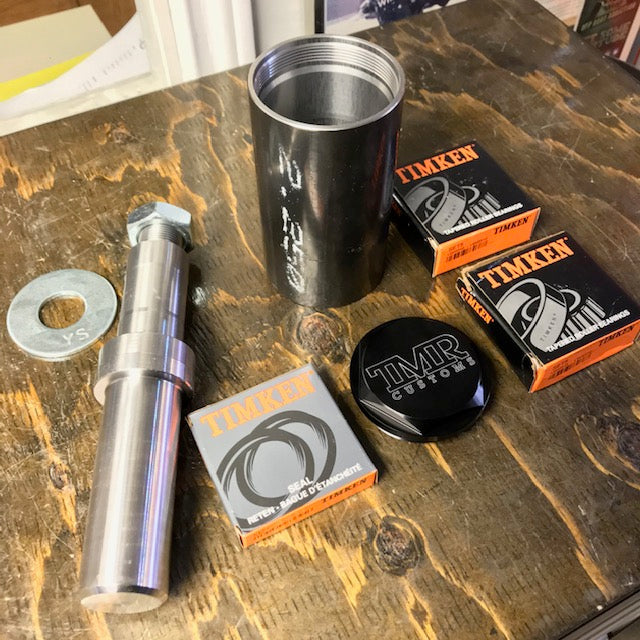

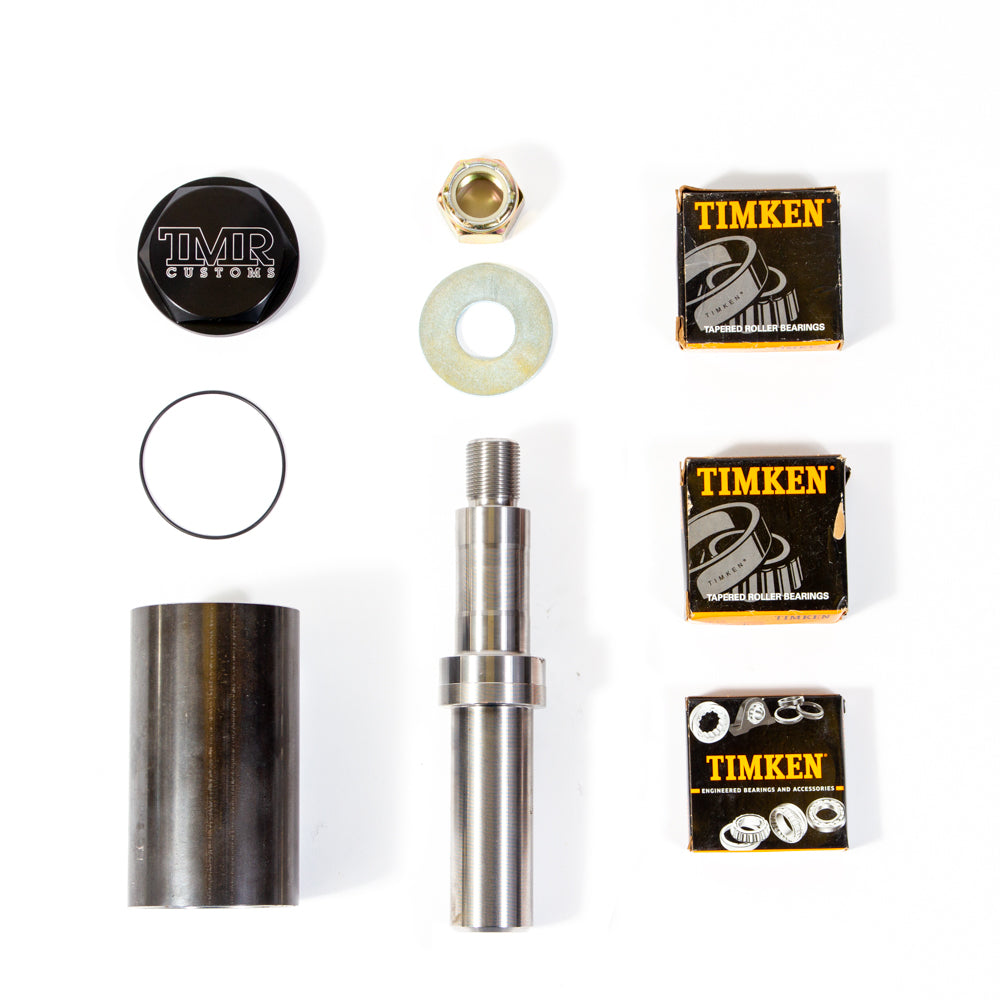

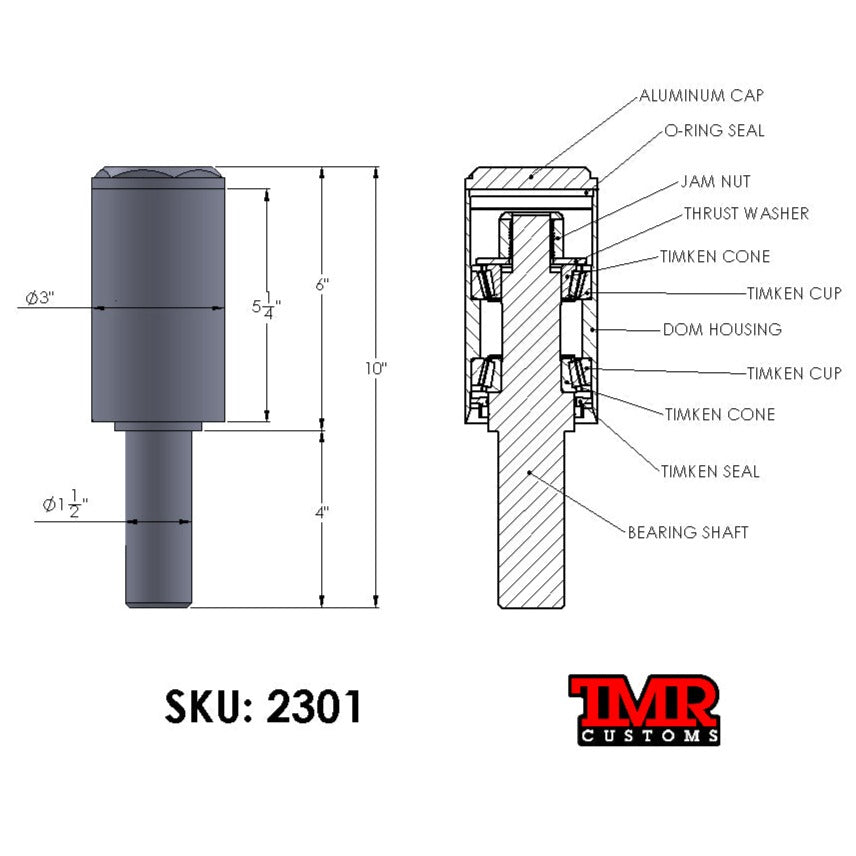

Includes the following:

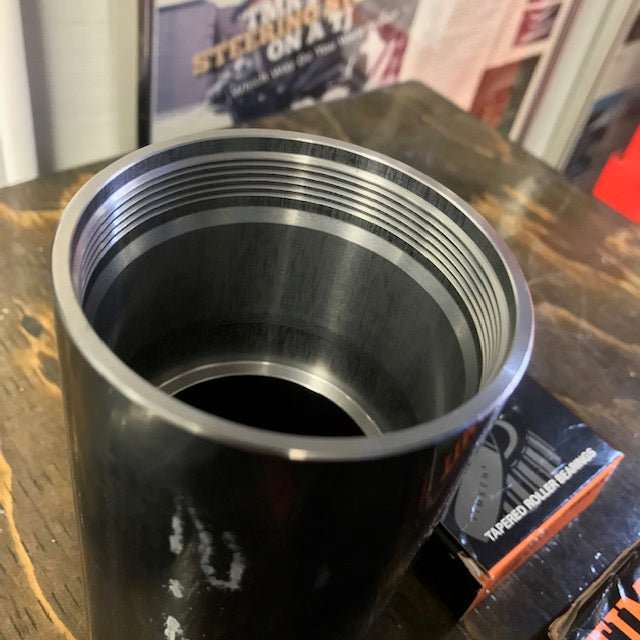

  • 3" x 3/8" Wall DOM outer housing

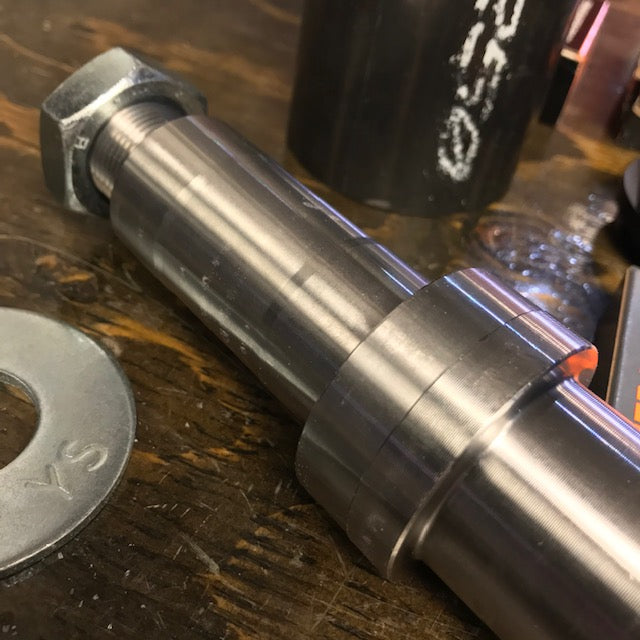

  • 1-3/8" bearing shaft (Machined from solid 2" material!)
  • 1-1/2"diameter x 4" long mounting post (easily welded into 2" x 4" rectangular tubing)

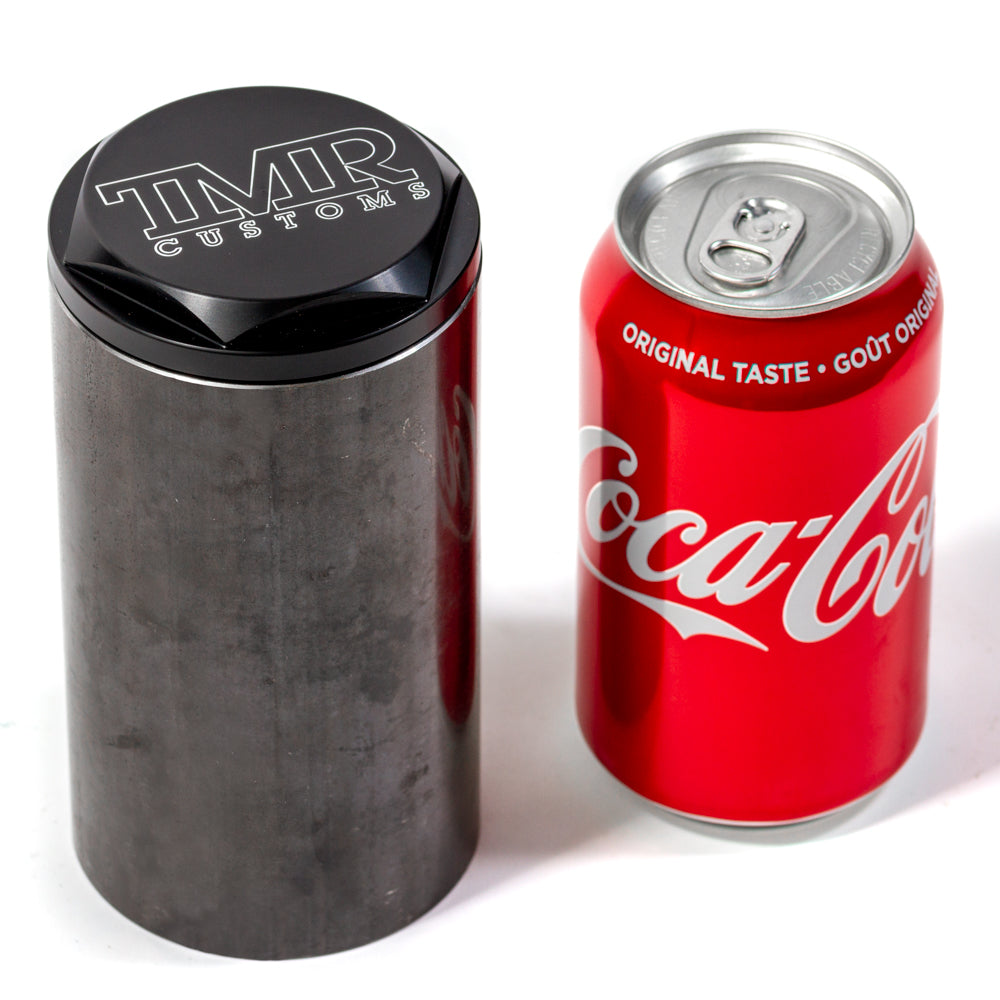

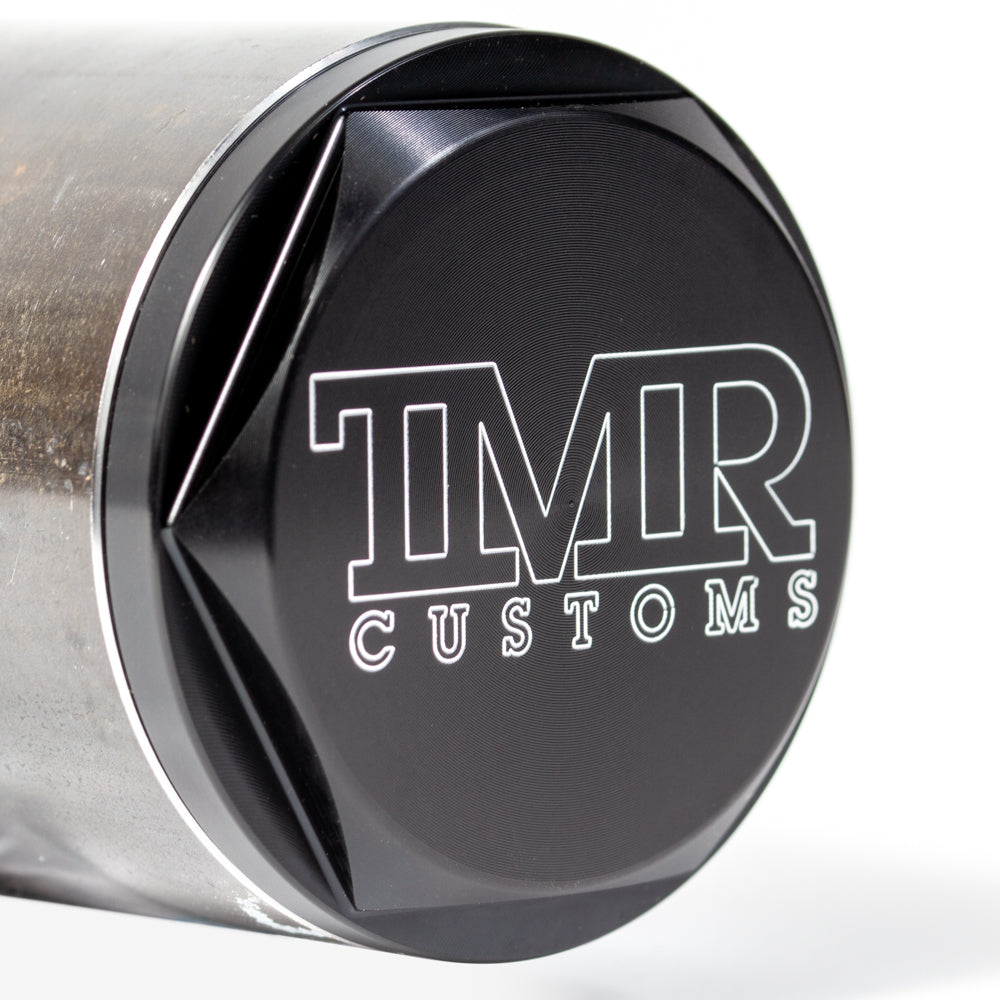

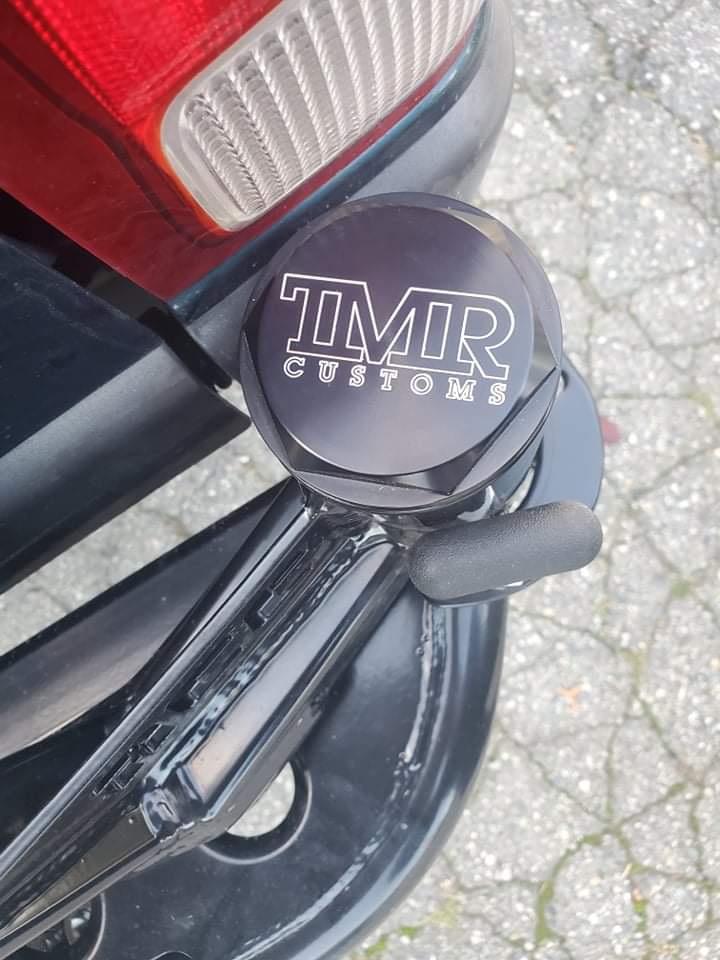

  • Beautifully CNC machined aircraft grade threaded billet aluminum top cap
  • 2 x Timken or WJB tapered roller bearings & races (based on supplier availability)
  • High quality Timken or WJB seal (based on supplier availability)
  • 1"-14 jam nut
  • 1" thrust washer

    Designed for use with 40" or smaller tire

    We're wheelers too - we back every product with the TMR Customs quality guarantee. Our products are designed to be the ultimate in durability and withstand years of abuse. So go ahead and abuse them in the dirt and rocks - just as they were intended!

    DESIGNED, MANUFACTURED AND TESTED BY TRUE OFF ROAD ENTHUSIASTS!

    average rating 4.9 out of 5
    Based on 11 reviews
    • 5 Stars
      10 Reviews
    • 4 Stars
      1 Review
    • 3 Stars
      0 Reviews
    • 2 Stars
      0 Reviews
    • 1 Star
      0 Reviews
    100% of reviewers would recommend this product to a friend
    Customer photos and videos
    11 Reviews
    Reviewed by Kenneth G.
    Verified Buyer
    I recommend this product
    Rated 4 out of 5
    Review posted

    Good quality and fitment

    I knocked off a star just because I was expecting Timken bearings and seals but ended up with a set of bearings and seals from a brand I’ve never heard of.

    Everything else was excellent. The spindle is super strong and welded up nicely.

    I had to contact customer service because I’m stupid and their response was incredibly fast.

    I will definitely purchase builder parts from them again.

    Loading...
    Was this helpful?

    TMR Customs

    Thanks, Kenneth. We appreciate the feedback. Unfortunately we've had a lot of supply chain issues with Timken and we've had to sub other bearings when necessary. Have a great day!

    Reviewed by Ryan H.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5
    Review posted

    Size matters.

    Biggest kit we could find. Replacing a different "heavy duty" spindle that didn't hold up. This kit is pure beef!

    Loading...
    Was this helpful?

    TMR Customs

    Thanks Ryan! Haha, the spindle definitely brings the beef!

    Reviewed by Josiah S.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5
    Review posted

    Looks really good

    High quality product, love the machined aluminum cap and the spindle is super beefy. Can’t wait to add it to my bumper.

    Loading...
    Was this helpful?

    TMR Customs

    Thanks Josiah! Be sure to follow up with pics once you get your bumper built, we love seeing our products come to life!

    Reviewed by Josh B.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5
    Review posted

    This should do the job for sure 👍 very stout yhank you.

    Very well thought out should do the job with no issues.

    Loading...
    Was this helpful?

    TMR Customs

    Thanks Josh. We appreciate you taking the time to leave a review.

    Reviewed by Len S.
    Verified Buyer
    I recommend this product
    Rated 5 out of 5
    Review posted

    Latches and spindle!!!

    I love your stuff! Me and the girl are over the moon. Thanks!

    Loading...
    Was this helpful?

    TMR Customs

    Nice work! You've got some great fabrication skills!
