Rated 4.6 out of 5
Based on 21 reviews

SKU: 1586

$99.99

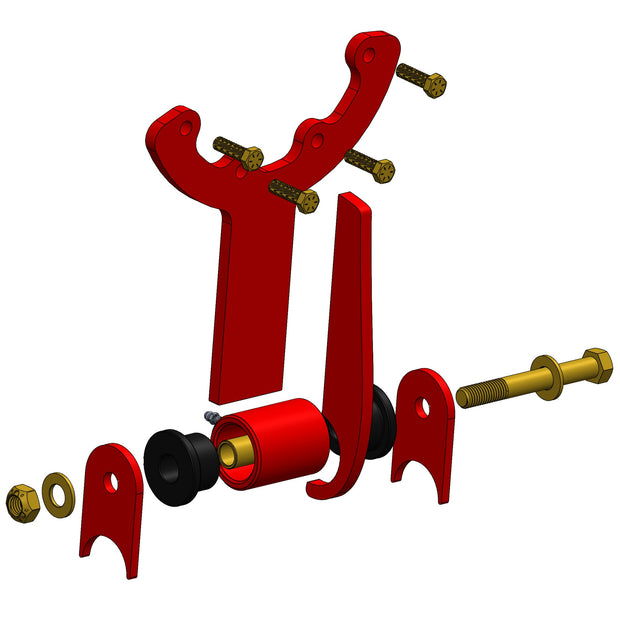

Kit includes the following:

  • Transfer case support & gusset (cnc laser cut from 3/8" steel)
  • 2 x poly bushing halves
  • DOM tubing inner and outer sleeves
  • All necessary grade 8 fasteners
  • 2 x mounting tabs (cnc laser cut from 1/4" steel)

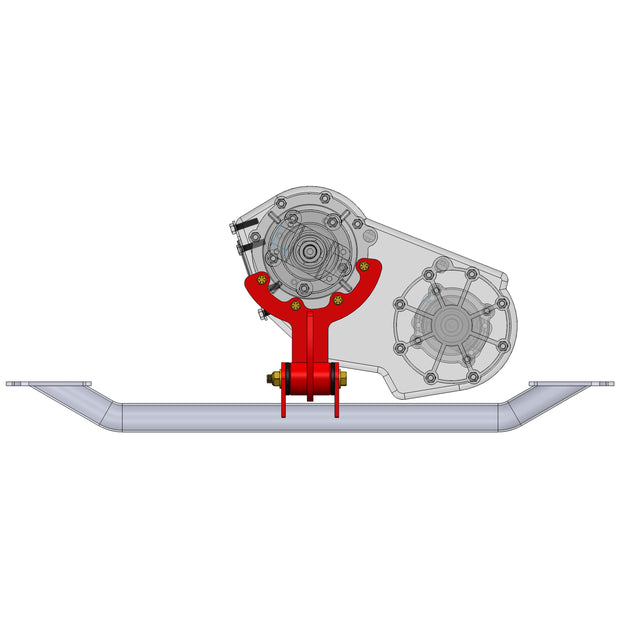

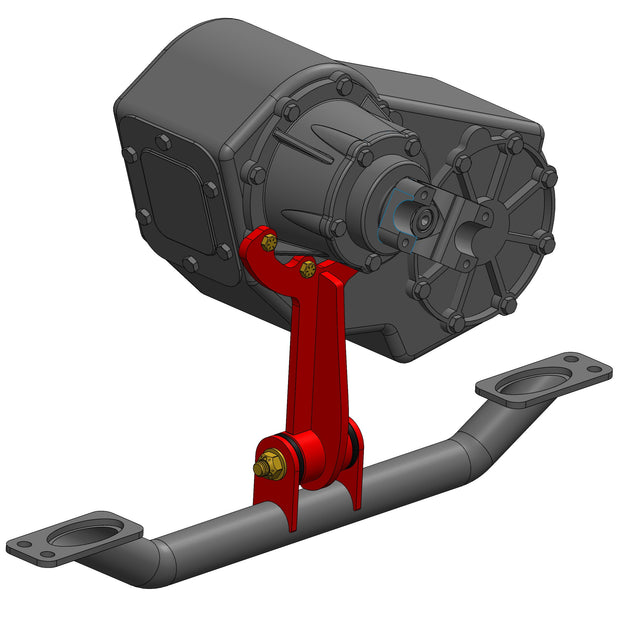

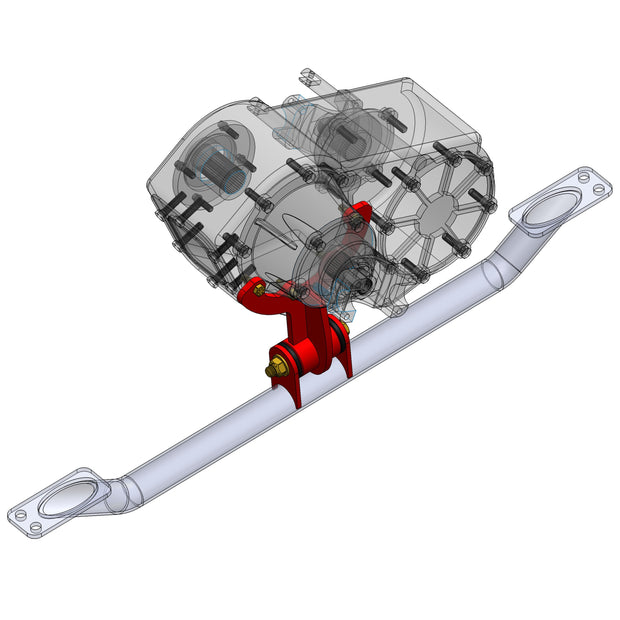

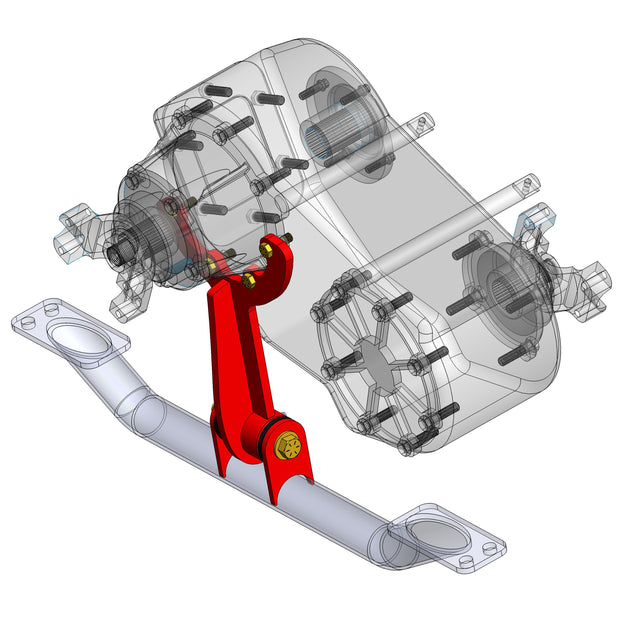

  • Simply bolt the support to your NP205 using the supplied hardware then trim the mounting tab and gusset to suit the correct length and angle

Modification/customization will be required. Speedo equipped NP205's may require you to remove 1 of the 4 mounting holes on the TMR flange.

We're wheelers too - we back every product with the TMR Customs quality guarantee. Our products are designed to be the ultimate in durability and withstand years of abuse. So go ahead and abuse them in the dirt and rocks - just as they were intended!

DESIGNED, MANUFACTURED AND TESTED BY TRUE OFF ROAD ENTHUSIASTS!

Write a Review
average rating 4.6 out of 5
Based on 21 reviews
  • 5 Stars
    15 Reviews
  • 4 Stars
    4 Reviews
  • 3 Stars
    2 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
90% of reviewers would recommend this product to a friend
Customer photos and videos
Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal Open user-uploaded photo and review in a modal
21 Reviews
Reviewed by Peter
Verified Buyer
I recommend this product
Rated 4 out of 5
Review posted

Np205 support.

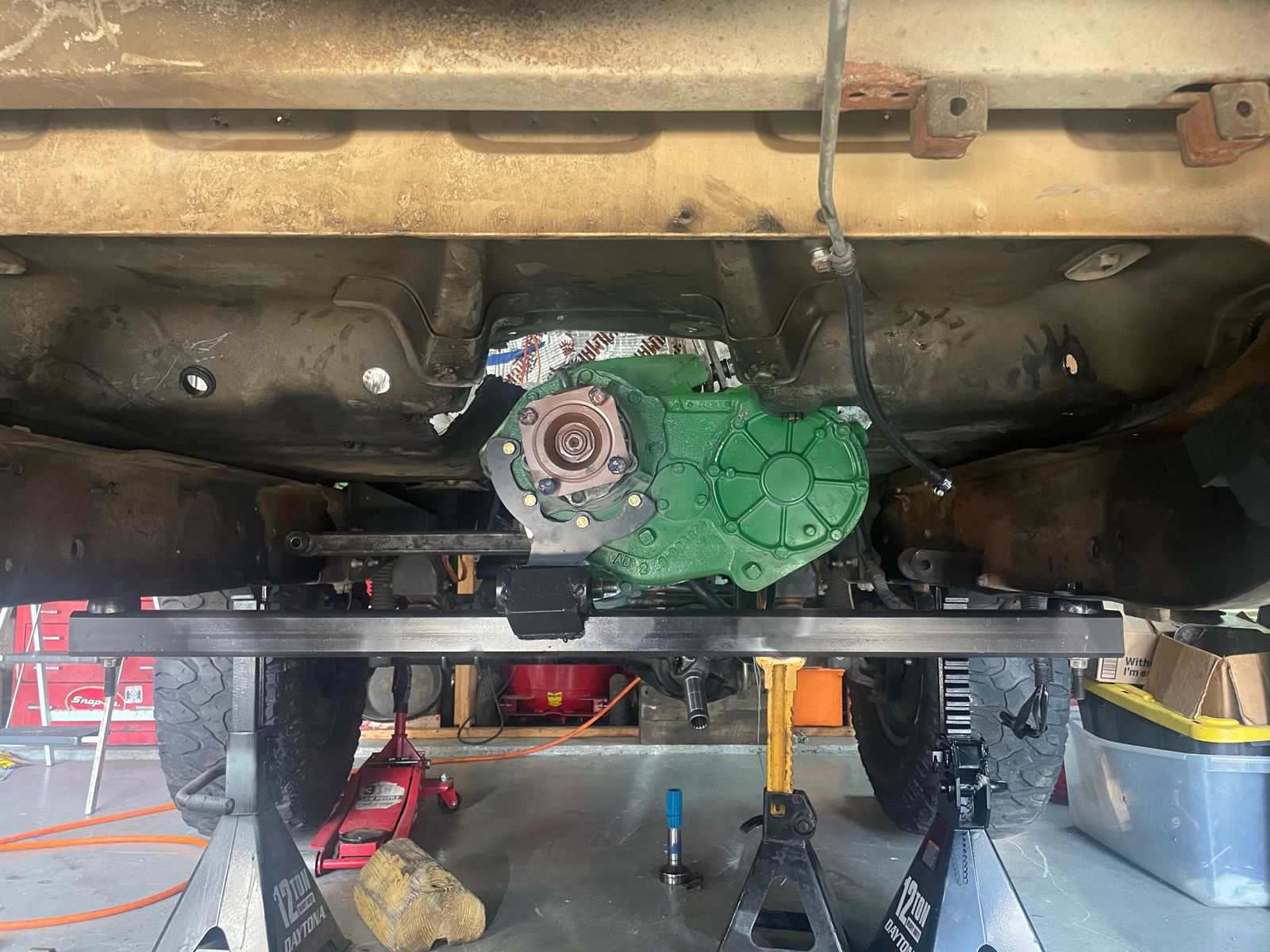

Solid product that gives you alot of leeway when it comes to how you want to build it. Could deffently use some dialing in for fitment on Ford 205s. Had to make provisions for the fill plug and had to grind it down a fair bit to make all the bolt holes line up correctly. Overall pretty solid.

Loading...
Open Image by Peter in a modal Open Image by Peter in a modal Open Image by Peter in a modal Open Image by Peter in a modal Open Image by Peter in a modal
Was this helpful?

TMR Customs

Thanks, Peter! All the NP205's are fairly different, as well as the clocking pattern(s). Looks like you did a great job modifying the mount to suit your needs.

Reviewed by Steven P.
Verified Buyer
Rated 3 out of 5
Review posted

Works

Super helpful to have! However I had to grind it down a bit so it would clear the fill hole and and I still need to drill it out so the 4th bolt hole lines up

Loading...
Open Image by Steven P. in a modal Open Image by Steven P. in a modal
Was this helpful?
Reviewed by Hayley S.
Verified Buyer
Rated 3 out of 5
Review posted

Support kit for NP205

I received it, built it and it worked mostly fine. However the cut outs around the stiffiners are not cut far enough. The plate wont sit flush on the T-case unless I put spacers under the bolts or maybe I will have to cut or grind some more.

Loading...
Open Image by Hayley S. in a modal Open Image by Hayley S. in a modal
Was this helpful?

TMR Customs

Nice! Yes, you'll need to grind more relief to clear the upper casting webs. The mount is traditionally used on the bottom side of the case, where as yours is top mounted. Great looking fabrication!

Reviewed by Nicholas W.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Beefy

Very nice, 3/8 plate very beefy & I love it. Shipping was fast and every time I order from TMR I get what I expect, a quality item. Thanks for the great work and great products!

Loading...
Was this helpful?

TMR Customs

Awesome! Glad to hear you are always happy with our parts and service. Thank you for the repeat business!

Reviewed by Kevin M.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Heavy duty awesomeness!!

Amazing product the really gives you the option to make it exactly what you want it to be. I love that they used 3/8” plate and a grease-able bushing.

Loading...
Open Image by Kevin M. in a modal Open Image by Kevin M. in a modal Open Image by Kevin M. in a modal Open Image by Kevin M. in a modal Open Image by Kevin M. in a modal Open Image by Kevin M. in a modal Open Image by Kevin M. in a modal Open Image by Kevin M. in a modal
Was this helpful?

TMR Customs

Nice! That's a great looking install. Thank you for sharing.
