Heavy Duty 1 Ton Steering Kit - Crossover
Heavy Duty 1 Ton Steering Kit - Crossover
Heavy Duty 1 Ton Steering Kit - Crossover
Heavy Duty 1 Ton Steering Kit - Crossover

Heavy Duty 1 Ton Steering Kit - Crossover

SKU: 1567

Regular price $ 3,901.00

Uses MADE IN USA Chevy 1 Ton Tie Rod Ends/TRE's!

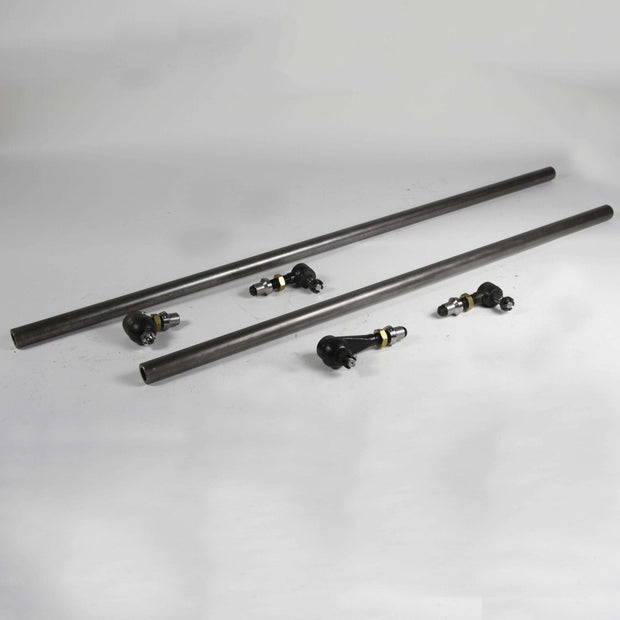

Includes the following components to build your custom Tie Rod:

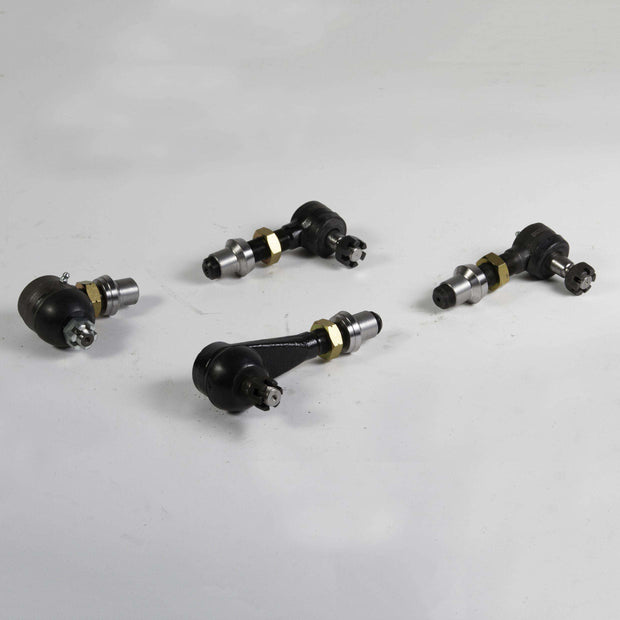

1 x ES2234R Tie Rod End
1 x ES2234L Tie Rod End
1 x 7/8"-18 RH Tube Adapter
1 x 7/8"-18 LH Tube Adapter
1 x 7/8"-18 RH Jam Nut
1 x 7/8"-18 LH Jam Nut

Includes the following components to build your custom Drag Link:

1 x ES2234R Tie Rod End
1 x ES2027L Tie Rod End (This TRE is a high angle drag link end that will attach to your Pitman Arm. It requires deeper reaming than the other TRE's included in the kit)
1 x 7/8"-18 RH Tube Adapter
1 x 7/8"-18 LH Tube Adapter
1 x 7/8"-18 RH Jam Nut
1 x 7/8"-18 LH Jam Nut

Optional tube lengths are:

1 x 58" 1.5"OD x .250"W DOM Tubing (tie rod)
1 x 48" 1.5"OD x .250"W DOM Tubing (drag link)


We're wheelers too - we back every product with the TMR Customs quality guarantee. Our products are designed to be the ultimate in durability and withstand years of abuse. So go ahead and abuse them in the dirt and rocks - just as they were intended!

DESIGNED, MANUFACTURED AND TESTED BY TRUE OFF ROAD ENTHUSIASTS!
